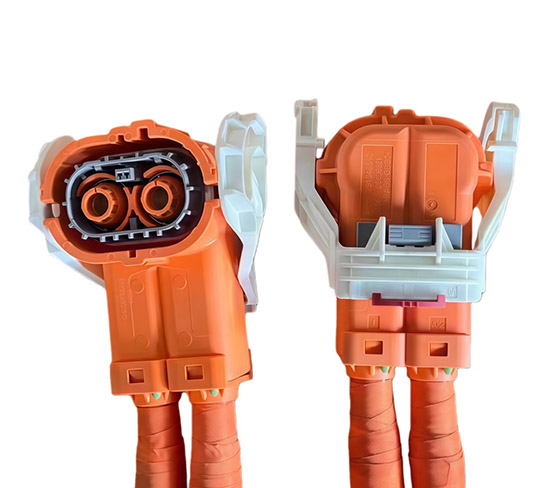

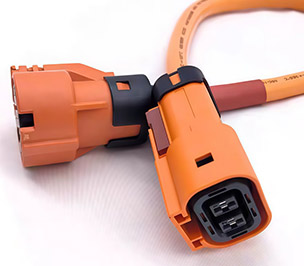

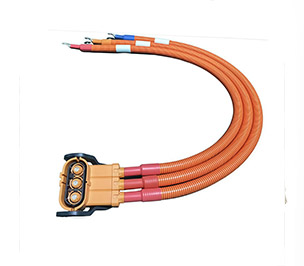

Specifically designed for PEU (Power Electronic Unit) in new energy vehicles, its core purpose is to enable high-voltage power transmission and control signal interaction between the PEU and core components such as the power battery pack, drive motor, OBC (On-Board Charger), and DC-DC converter. It is suitable for integrated PEU installation scenarios (power compartment/chassis integration area). The wiring harness adopts a PEU-specific interface design, low-impedance high-voltage conductors, and a multi-layer protection structure. Combined with automotive-grade high-voltage sealed terminals and a complete set of installation accessories, it possesses characteristics such as high voltage resistance, strong insulation, electromagnetic interference resistance, and vibration resistance. It can withstand complex operating conditions such as high PEU operating temperatures, vehicle vibration, and chassis oil contamination, making it a key connection component ensuring efficient PEU conversion and stable power output.
| Customization Dimension | Optional Parameter Range | Description |
|---|---|---|
| PEU Model Compatibility Customization | Compatible with PEUs (BYD / Tesla / NIO / Xpeng / Huawei MDC, etc.); Matching power levels (30kW~300kW) | PEU model, interface drawing, and installation layout required to ensure precise compatibility with PEU interfaces and installation space |
| Voltage, Current & Conductor Size Customization | High-voltage: DC 600V~2000V, 50A~800A, 6~150mm²; Control Signal: 24~14AWG | ≥50mm² high-voltage conductor recommended for high-power PEUs (>200kW); 16AWG+ conductor recommended for long-distance (>5m) control signal transmission |
| Material & Protection Customization | Conductor: Tinned Copper / Bare Copper / Silver-plated Copper; Sheath: XLPE/TPU/Teflon; Protection Level: IP67~IP68 | IP68 protection for PEUs near wading areas; TPU sheath for low-temperature regions; XLPE preferred for high-temperature dense areas (excellent heat dissipation) |
| Connector & Terminal Customization | Connectors: PEU-Specific Sealed / Explosion-proof / Quick-Connect; Terminals: High-Voltage Crimp / Board-to-Board / Error-Proof | Explosion-proof connectors for high-voltage PEUs (>1000V); Quick-connect connectors for frequent maintenance scenarios; Error-proof terminals for bulk assembly |
| Integrated Function Customization | Integrate Overcurrent Fuse / Voltage Detection Module / EMC Filter Component / Temperature Sensor | Fuse rated current and detection module signal protocol to be specified; Filter components must meet PEU’s electromagnetic compatibility (EMC) requirements |
| Layout & Length Customization | Length: 1m~10m (Supports PEU-Specific Branch Layout); Layout: Integrate high-voltage/signal lines as needed | Relative position diagram of PEU and surrounding components required; Branch design must avoid PEU heat dissipation ports and moving parts to prevent damage |
| Marking & Compliance Customization | Custom PEU Number / Voltage Level / Line Function / High-Voltage Warning | Free laser marking for bulk orders (≥30 sets) with labels such as “PEU – Battery Pack” / “DC 1000V” to meet vehicle compliance requirements |
| Packaging Customization | Individual Moisture-Proof Packaging per Set / Bulk Anti-Static Packaging / Export-Customized Packaging | Standard delivery with individual moisture-proof packaging; UN 38.3-compliant anti-static packaging optional for export vehicle matching to prevent transportation damage |
If you are interested in any product, please contact us. We will introduce our products to you in more detail
