How Does EMI Shielding Improve Drone Wiring Harness Stability?

In current UAV design, stability goes beyond just flight math or motor power. The hidden electrical setup inside the frame plays a huge role. The drone wiring harness sits right at the heart of this setup. It decides how smoothly power and signals travel. These travel between the flight controller, sensors, speed controllers, and cameras. In tightly packed drones, tiny bits of electrical noise can create big problems. They might cause the drone to drift off course. They can also delay the video feed. This is very true when builders use fast data lines like a cable USB drone for the cameras.

EMI means electromagnetic interference. It is a major hidden risk for drone performance. This affects everything from factory inspection drones to fast FPV racers. We can look at real-world methods from Songyuan wiring harness. Engineers take shielding ideas from factory and hospital cables. They bring these ideas into drone setups. This keeps signals strong and clear. It also keeps flight controllers safe near fast-spinning motors.

What EMI Means in Drone Cable Systems and Why It Matters

Electrical noise inside a drone mostly comes from fast-switching signals. Speed controllers and fast motors make these signals. The noise moves through the air and the wires. It jumps into sensitive data lines inside the drone cable network. This noise mixes with delicate control signals. When this happens, the flight controller reads bad data.

Drone bodies are often very small. Because of this, the drone wiring harness usually sits right next to heavy power lines. This layout makes signal problems much more likely. FPV drones face the biggest risks here. Their live video needs a solid digital link. A badly protected cable usb drone setup causes real trouble. You might see dropped video frames or sudden lag. You could even lose the signal completely during sharp turns.

Factory tests show that good shielding keeps signals reliable. Think about hospital heart monitors. Well-shielded wires block standard power noise. They let tiny signals pass without any loss. The exact same rule works for drones. Flight data needs that same top-level protection. Drones just need it in a much smaller size.

Why Drone Wiring Harness Design Affects Flight Controller Performance

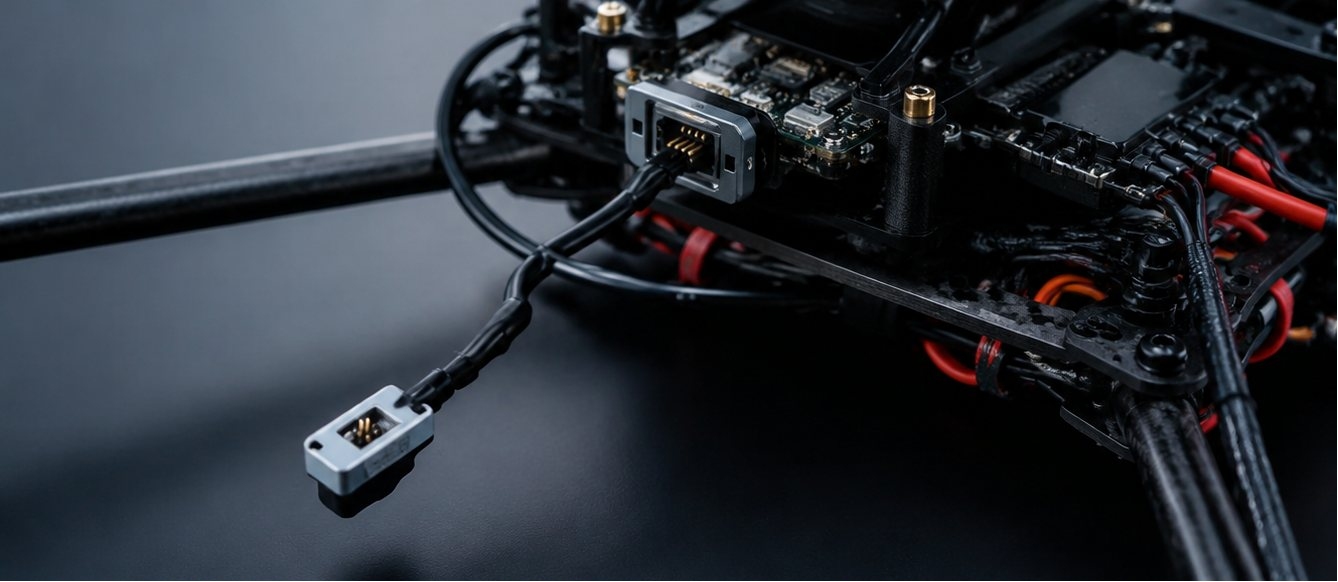

The drone wiring harness acts just like a nervous system for the UAV. Every single command and sensor reading travels through it. Power changes move along these wires, too. Sometimes, outside electrical noise breaks into these paths. Then, the flight brain gets mixed-up messages. This causes the drone to correct its balance the wrong way.

Field tests by Songyuan wiring harness prove a key point. Multiple layers of shielding make signals much clearer. Car systems use a mix of foil and copper mesh. This blocks over 95% of outside noise. It cuts signal drops by 40% in sensitive tools. Drone makers use this exact method today. It works perfectly for top-tier drone cable setups.

You can easily see this difference in FPV flying. A protected cable USB drone wire keeps the digital stream clean. It links the camera to the main board without trouble. This keeps the video frames perfectly timed. It works well even when motors create heavy electrical stress.

How EMI Shielding Works in Cable USB Drone Systems

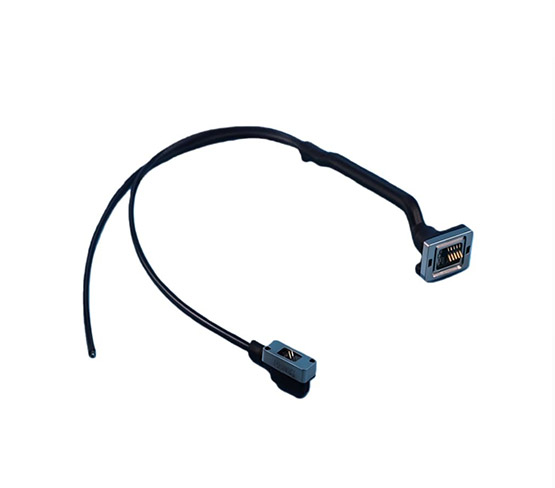

A modern cable USB drone does not just use one shield layer. It uses a full defense system. First, it has a metal core to send data. Next, a plastic layer stops electrical leaks. Finally, an outer shield blocks outside noise.

This outer shield does three main jobs. First, it bounces bad signals away from the main wire. Second, it catches stray noise and sends it to the ground. Third, it keeps the inside energy calm. This stops nearby wires in the drone wiring harness from messing with each other.

Songyuan wiring harness shares useful test results. They blend copper mesh with foil layers. This double defense stops heavy noise in hospital scanners and factory robots. Drone builders use this same layout. It keeps data paths totally clean. It works even when motor speeds change very fast.

What Specifications Matter in a Drone Wiring Harness Design

Different drone wiring harness setups offer different levels of protection. Experts look at four main features. These details decide if the wires can keep the drone stable. They also affect how well a fast drone cable works.

What Happens When a Drone Wiring Harness Is Not Properly Shielded

Weak shielding leaves the drone wiring harness open to bad data. The first sign is usually jerky flying. The main board gets late or messy sensor readings. Because of this, the drone might shake while hovering. It could also drift away from its path.

Also, an unprotected drone cable faces power line mixing. Heavy power lines bleed into weak data lines. This causes shaky camera views. It slows down flight data updates. Sometimes, parts stop talking to each other for a moment. In FPV setups with a cable USB drone, the video might tear. The pilot might also feel a delay during fast turns.

Constant electrical noise hurts the wires over time. It wears out the plastic cover faster. This shortens the life of the whole wire set. Owners must fix their drones more often. This costs extra money. It is a big problem for business drones that map land or check power lines.

Conclusion

Drones keep getting smaller. They also handle more data than ever before. Because of this, blocking electrical noise is a total must. The drone wiring harness is not just a simple plug anymore. It is a core safety feature. It controls how well the drone flies. It also keeps the data link strong and safe.

Builders can use tough factory shielding rules for a drone cable or a cable usb drone cable. This step makes the signals clear and the drone reliable. Songyuan wiring harness shows us the right path. They use smart shields and clean copper. They add top-quality plastics. Together, these parts build a rock-solid data path for tough flying spaces.

FAQ

How does EMI affect a drone wiring harness in flight stability systems?

EMI pushes bad noise into the drone wiring harness. This creates messy sensor data. The main board reads it wrong. The drone might drift or lose its exact spot in the air.

Why is a cable USB drone important for FPV performance?

A cable USB drone moves fast and safely. It connects cameras to the main board. This cuts down the delay. It also stops dropped frames while flying live.

What makes a drone cable more resistant to electromagnetic interference?

A smart drone cable uses two shield layers. It features super clean copper inside. It also uses ground paths to push outside noise away.

Can a drone wiring harness improve GPS and sensor accuracy?

Yes, a protected drone wiring harness cuts down bad electrical waves. This lets GPS and movement sensors grab highly accurate data.

How does Songyuan’s wiring harness ensure reliability in drone cable systems?

Songyuan wiring harness uses heavy-duty factory shields. They pick clean copper and tough plastics. This stops noise and makes the wires last a long time.
