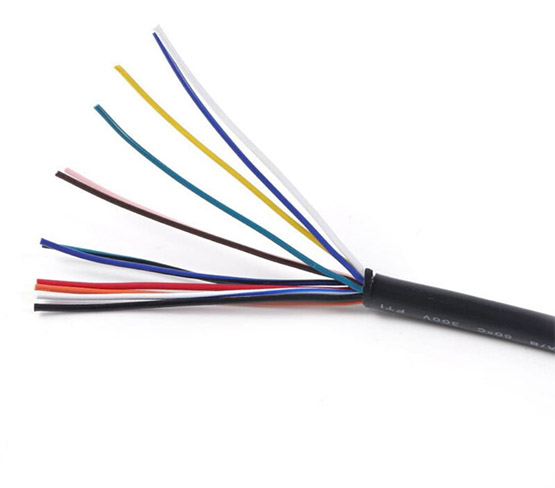

UL1332 High-Temperature Fluoroplastic Electronic Wire

Suitable for high-temperature equipment such as electric heaters, electric irons, and generators. It can also be used as internal leads for fire-resistant cables in high-rise buildings and industrial high-temperature instruments, ensuring long-term stable operation under harsh high-temperature conditions.

Product Features:

High temperature resistance, solderability, resistance to acids and alkalis, and various chemical solvents; stable electrical performance; low signal attenuation at high frequencies.

Whats App Message Email

Product Description

UL1330 is a US standard single-core fluoroplastic electronic wire designed for high-temperature resistance and high-voltage compatibility. It uses FEP (fluorinated ethylene propylene) as insulation, meeting the wiring requirements of harsh environments with high temperatures and chemical corrosion. It complies with UL758, UL1581, and CSA C22.2 No.210.2 standards and is widely used in the internal wiring of equipment requiring stable transmission, such as household appliances and industrial instruments.

Product Specifications

Conductor: High-purity copper wire

Insulation: TEFLON FEP material

Rated Temperature: 150 – 200℃

Wire Gauge (AWG)	Conductor Construction	Insulation Thickness (mm)	Insulation Diameter (mm)	Max Conductor Resistance @ 20°C (Ω/km)	Standard Length (m)
36	7/0.05mm Stranded Tinned Copper	0.085	0.32	1900	305
34	7/0.064mm Stranded Tinned Copper	0.075	0.34	900	305
30	Stranded Tinned Copper	0.51	1.3	381	1220
28	Stranded Tinned Copper	0.33	1.35	239	1220
26	Stranded Tinned Copper	0.33	1.5	150	610
24	Stranded Tinned Copper	0.33	1.65	94.2	610
