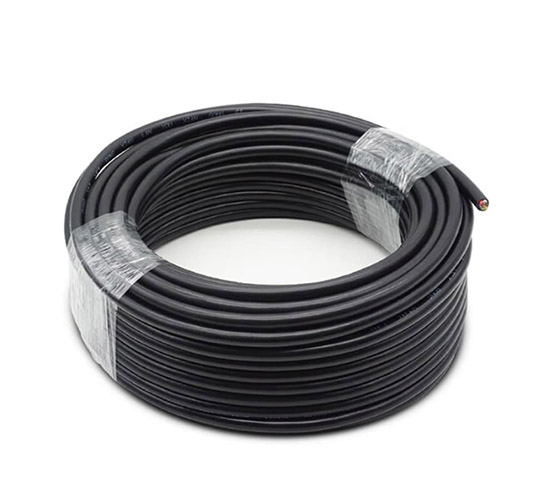

UL1007 1015 General Purpose PVC Electronic Wire

Suitable for DIY electronic projects such as Arduino, internal wiring of small home appliances, charger leads, etc. It is a cost-effective choice for mass production and electronic repair.

Product Features:

Soft and flexible / easy to peel and cut / affordable price

Whats App Message Email

Product Description

This is the most widely used basic electronic wire in the electronics industry, a true all-purpose wiring tool. As a fundamental, universal American standard electronic wire in the electronics manufacturing field, UL1007 boasts mature technology, high cost-effectiveness, and wide compatibility. It has passed both UL and CSA certifications and complies with the UL 758 standard, making it the benchmark choice for internal wiring of electronic devices worldwide. Its stable and reliable performance covers the low-voltage connection needs of all scenarios, from home electronics to industrial instruments, making it the preferred wire for mass production and repair/replacement.

Product Specifications

Wire Gauge (AWG)	Conductor Construction	Conductor Diameter (mm)	Insulation Thickness (mm)	Finished Diameter (mm)
30	7/0.1mm	0.3	0.41	1.12
28	7/0.127mm	0.38	0.41	1.20
26	7/0.16mm	0.48	0.41	1.30
24	11/0.16mm	0.61	0.41	1.43
22	17/0.16mm	0.76	0.41	1.58
20	26/0.16mm	0.94	0.41	1.76
18	41/0.16mm	1.18	0.41	2.00
16	26/0.254mm	1.49	0.41	2.32

Conductor: 7-41 strands of tinned copper wire of corresponding specifications
Wire Gauge: 16-30AWG, e.g., 24AWG conductor has a construction of 11/0.16mm and a conductor diameter of 0.61mm
Insulation: Lead-free PVC material, uniform thickness of 0.41mm
Outer Diameter: 1.12-2.32mm
Rated Temperature: 80℃
Rated Voltage: 300V, passed UL VW-1 vertical flame retardancy test
● Compliant with UL 758 standard
● Certified by both UL and CSA
● Passed UL VW-1 and CSA FT1 vertical flame retardancy tests
● Compliant with RoHS environmental standards
