What is a Cable Harness and Why is it Essential for Modern Electronics?

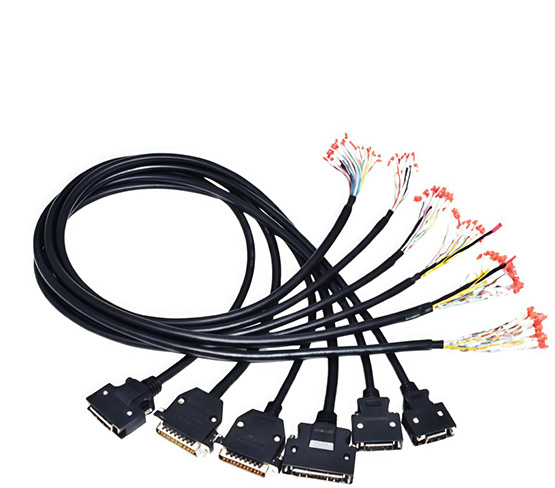

In the detailed area of current factory planning and electronic building, the inside wiring of a machine works like its main nerve center. This holds true for a vital health screen or a strong factory control unit. The smooth flow of signals and power relies fully on the strength of the cable harness.A custom wire harness groups different wires and cables into one neat setup. It offers a clear path for tricky electrical setups.  Every bit of information and every bit of power gets to its spot without any mix-up.

What is the Fundamental Difference Between a Cable Harness and a Cable Assembly

Grasping the fine points of an electrical cable harness starts by setting it apart from a basic cable setup. Both handle sending power or information. A cable harness focuses on grouping many single wires into a solid pack. It often has a special outer layer for safety. This kind of setup matters a lot for making the best use of the room in small electronics.

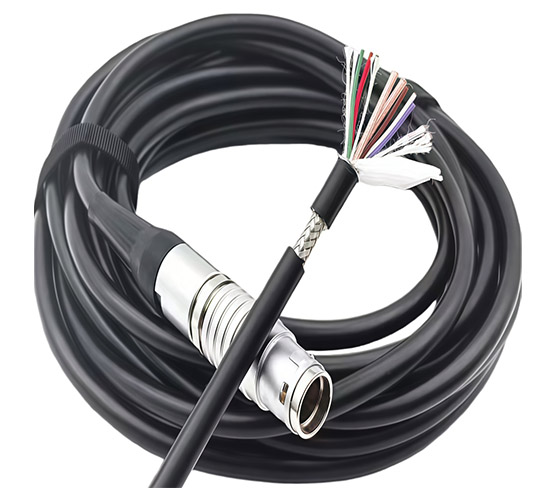

An electrical cable harness usually includes a mix of tinned copper lines, cover layers from FEP or health-grade silicone, and thick shield layers. Engineers handle thousands of single links in one easy-to-place part with a cable wire harness. This cuts down the chance of wiring mistakes in large-scale production.

Why an Electrical Cable Harness is the Backbone of Reliability

In areas where breakdowns cannot happen, the cable harness acts as the main guard for steady running. Take health beauty tools or factory auto systems as examples. A loose wire can cause a major breakdown. A top-grade electrical cable harness tackles these issues with clear physical benefits, especially when integrated into a high-performance vehicle wiring harness.

• Room saving: Grouping wires shrinks the space needed for inside circuits. It lets devices become slimmer and more user-friendly in shape.
• Clear signals: Better cable wire harness plans use aluminum wrap and copper net weaving to block electrical noise (EMI). This keeps 99% color match in sharp video feeds.
• Better protection: Wires stay safe in a fire-proof or water-proof cover (like IPX6 level) with a cable harness. It stops short links from dampness or shakes.
• Lasting strength: Fine lines like silver-covered copper give low pushback and good flow. They stretch the work life of the gear.

How Advanced Materials Transform Cable Wire Harness Performance

Picking materials sets the top limit for how well any electrical cable harness works. In our building steps, we pick supplies that hold up in tough spots. FEP or PFA for covering gives great rub resistance and steady hold against chemicals. This proves key for health tools that face regular cleaning.

Building a cable harness for quick data sending changes with fiber optic mixed cables. These blended setups allow speeds over 18Gbps. They back 4K view at 60 frames per second with a delay below 20ms. Such exact work only comes when a cable wire harness uses a 75Ω match for resistance and gold-covered exact links.

Case Studies in Specialized Electrical Cable Harness Applications

Work in the area shows that the top cable harness answers come from fixing set tech issues. I have noted how the fitted building shifts results in these cases.

We faced issues in making ECG tools like the MAC1200 line. Heart signals from people got lost in the 50Hz power buzz and muscle noise. We reworked the electrical cable harness with clean silver-covered copper lines and aimed shields. This gave a full send of weak mV signals. It catches the heart electric work with full sharpness. That helps spot-on health checks.

In the health beauty field, we added a cable wire harness with HDMI 2.1 active pure light fiber. Mixing light fibers with thick copper net weave raised spot accuracy by 25%. This special cable harness sent a 4K video live to check screens. It shows that supply knowledge unlocks gear power.

Why Customization is the Future of the Cable Harness Industry

The move to fresh power and factory auto calls for a sharper electrical cable harness. A plain, ready wire no longer fits for hydrogen power hold or tricky robot parts. Fitting lets the exact tuning of wire center sizes, from 0.1mm² to 2.5mm². It matches set power and flow needs.

As a worker at Songyuan, I have watched how adding fitted TDK build and special link kinds like safe snap-fit plans boosts line work speed. Sticking to world rules like ISO 10993, CE MDR, and FDA 510(k) makes sure each cable wire harness we make hits the strict safety needs of the global trade.

Conclusion

The cable harness goes beyond a simple wire group. It stands as a carefully built part that keeps safety, smooth work, and long life in current electronics. From quick data grabs in health and beauty to steady power spread in factory control, the electrical cable harness stays a must-have in our tech base. Makers cut costs and lift user satisfaction by picking a cable wire harness with fine supplies and skilled plans.

FAQ

Q: What is the average lifespan of a Songyuan cable harness in a medical environment?

A: Songyuan builds a fine cable harness for long use. It often has gold-covered links with plug and pull life over 1,000 times. Health-grade silicone or PU covers resist alcohol, iodine, and EO cleaning. They stay working through the full planned life of the health machine.

Q: How does a cable wire harness prevent electromagnetic interference in industrial settings?

A: A fitted cable wire harness fights electrical noise with a many-layer shield build. It mixes aluminum wrap and tin-covered copper net with at least 98% cover. This setup makes a Faraday box outcome. It guards inside signals from outside electronic buzz and keeps data send steady.

Q: Why should I choose a custom electrical cable harness over individual wires?

A: A fitted electrical cable harness makes placement easier and lowers the risk of wiring mistakes. Grouped packs handle better, use less room, and guard against rub wear more than loose single wires. It builds a steadier setup with smaller fix needs over time.

Q: Can a cable harness be made waterproof for outdoor or medical use?

A: An electrical cable harness can be built to hit set water entry levels, like IPX6. Waterproof links and special seal ways in the mold-over step let it withstand strong water sprays and body sweat rust. It fits well for health and tough factory jobs.

Q: What materials are best for a high-temperature cable wire harness?

A: Spots with high heat or chemical touch need a cable wire harness using FEP (Fluorinated Ethylene Propylene) or PFA (Perfluoroalkoxy) for covering. These supplies keep their pull traits and power block work at way higher heat than plain PVC. They make sure the full electrical setup stays safe.

For skilled help in planning your next strong cable harness, or to check our line of ISO-checked electrical cable harness answers, reach the build team at Songyuan Technology now. We commit to giving you the tech know-how and steady work needed for your key factory tasks.
