| Designed specifically for new energy vehicle charging stations, its core purpose is to achieve high-voltage power transmission (AC slow charging/DC fast charging) and communication signal interaction between the charging station and the vehicle. |

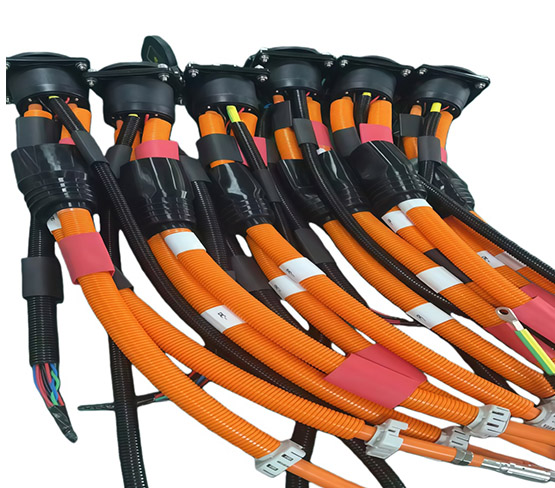

Designed specifically for new energy vehicle charging stations, its core purpose is to achieve high-voltage power transmission (AC slow charging/DC fast charging) and communication signal interaction between the charging station and the vehicle. It is compatible with public charging stations, home charging stations, commercial fast charging stations, and other scenarios. The cable adopts a high-conductivity conductor, multi-layer insulation protection, and IP67+ waterproof sealing structure. It is equipped with national standard/European standard/American standard dedicated charging connectors and has characteristics such as high voltage resistance, wear resistance, electromagnetic interference prevention, and high and low temperature resistance. It can withstand complex working conditions such as outdoor exposure to sunlight, rain, snow, and frequent plugging and unplugging. It is a core transmission component to ensure the safe and efficient charging of charging stations.
| Customization Dimension | Optional Parameter Range | Description |
|---|---|---|
| Charging Standard & Interface Customization | GB/T (China), Type 2 (Europe), J1772 (US), DC CCS/CHAdeMO Interfaces | Charger type (AC/DC) and target market to be specified to ensure compatibility with vehicle interfaces |
| Power & Specification Customization | Power: AC 3.3kW~22kW, DC 20kW~360kW; Current: AC 16A~32A, DC 30A~500A; Conductor Size: AC 1.5~6mm², DC 10~50mm² | ≥25mm² conductor recommended for DC fast charging (>120kW); Conductor upsizing required for long distances (>5m) to reduce power loss |
| Material & Protection Customization | Conductor: Tinned Copper / Bare Copper / Silver-plated Copper; Sheath: TPU/PVC/Low-Temperature Resistant Material; Protection Level: IP67~IP68 | Low-temperature resistant sheath for northern regions (<-40℃); IP68 protection for outdoor fast-charging stations; TPU preferred for standard scenarios (superior wear resistance) |
| Length & Function Customization | Length: 1m~10m (Compatible with cable reels); Functions: Integrate Temperature Sensor / Overcurrent Protection / Communication Chip | Temperature sensor prevents overheating during charging; Overcurrent protection must match charger rated current; Communication chip compatible with GB/T 27930 protocol |
| Marking & Compliance Customization | Custom Charger Number / Voltage Level / Power Marking / Safety Warning | Free laser marking for bulk orders (≥30 sets) with labels such as “DC 1000V” / “Fast Charging Only” to meet charging facility compliance requirements |
| Packaging Customization | Individual Moisture-Proof Packaging per Cable / Bulk Anti-Static Packaging / Export-Customized Packaging | Standard delivery with individual moisture-proof packaging; IEC-compliant anti-static packaging optional for export products to prevent transportation damage |
| Special Scenario Customization | Explosion-proof (Chargers in gas stations/chemical zones), Corrosion-resistant (Coastal high-salt-fog scenarios) | Explosion-proof type complies with Ex d IIB T4 standard; Corrosion-resistant type adopts Teflon sheath to enhance salt-fog resistance |
If you are interested in any product, please contact us. We will introduce our products to you in more detail
