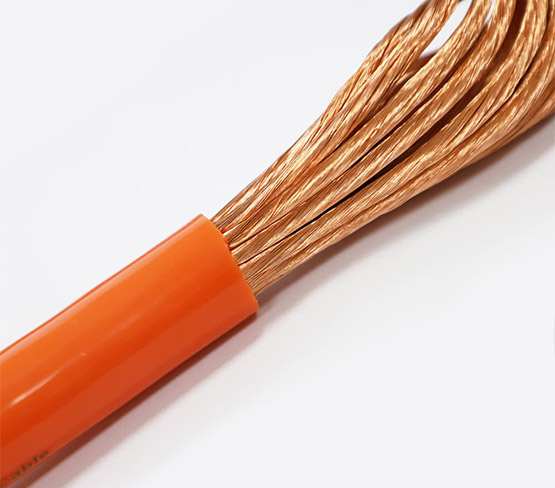

H03VH7 – H is a single-core, double-insulated PVC electronic wire that conforms to European standards such as VDE and is CE certified. With its good flexibility and reliable insulation, it is commonly used for lead-out connections and internal wiring in household appliances, lighting fixtures, and other equipment. It is suitable for various conventional and slightly complex electrical scenarios.
Compliant with international standard electronic wires conforming to EU CE certification
| Nominal Cross-Sectional Area (mm²) | Conductor Construction | Insulation Thickness (mm) | Finished Diameter (mm) |
|---|---|---|---|
| 0.5 | 16×0.20mm or 25×0.16mm Stranded Bare Copper | 0.50 | 2.4 |
| 0.75 | 24×0.20mm Stranded Bare Copper | 0.50 | No uniform value, slightly varies by structure |
| 1.0 | 32×0.20mm Stranded Bare Copper | 0.50 | No uniform value, slightly varies by structure |
Additional Notes: |
|||
Conductor: Made of copper wire, nominal cross-section 2.2mm², maximum outer diameter 6.0mm, outer diameter tolerance ±0.15mm
Insulation layer and sheath: Both are made of PVC material
Rated voltage: 300V, test voltage 1500V
Operating temperature: -30℃ to 70℃
●Product complies with ISO9001:2000 quality management system
●Manufactured in accordance with VDE 0281 standard
●Complies with IEC Relevant Flexible Cable Specification
