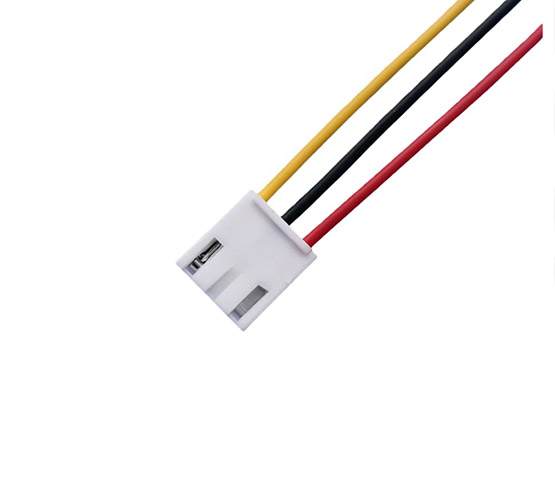

Fan battery terminal wire

Product Features:

√ Highly stable transmission
√ Durable and robust
√ Precision manufacturing

Whats App Message Email

Product Description

This wiring harness provides a stable power connection between the battery, motor, and control board for various types of fans (household table fans, portable rechargeable fans, and industrial exhaust fans), serving as a crucial transmission harness for fan endurance and speed control. It is compatible with fan battery packs (such as lithium batteries and NiMH batteries) with voltages from 1.5V to 24V, fan drive motors, and PCB control modules. It uses PH-type white plastic-shell terminals (industry-standard interface), compatible with the battery compartments and motor wiring ports of most fans, ensuring precise and secure insertion and removal. Customized accessories are supported, allowing for matching with different terminal types (such as XH/VH), wire lengths (10cm-100cm), and wire diameters to meet the installation space and voltage requirements of specific fans.

Product Specifications

Item	Specification Details
Application Scenarios	Battery-powered fan devices such as desktop fans, industrial fans, car fans, portable fans, etc.
Core Purpose	Power transmission between fans and battery packs to ensure stable equipment power supply
Compatible Devices	12V/24V DC fans, lithium battery packs (18650/21700, etc.), fan control boards
Electrical Parameters	Rated Voltage: 12V/24V DC (standard); Rated Current: 3A~5A (compatible with AWG#22~#20 wires); Withstand Voltage: 500V AC/1 minute (no breakdown)
Wire Specifications	Conductor: Stranded tinned copper (conductivity ≥98%); Wire Gauge: AWG#28~#20 (corresponding to 0.14mm²~0.5mm²); Wire Structure: 7/0.16mm~16/0.16mm (stranded, high flexibility)
Insulation/Sheath Material	Insulation Layer: PVC/XLPE (flame retardant grade V0); Sheath: PVC/TPU (wear-resistant, anti-aging); Insulation Outer Diameter: φ0.76mm~φ1.8mm
Terminal/Connector Type	Crimp terminals (compatible with JST PNI series/Kangrui KR3000 series); Material: C5191 phosphor bronze (tinned 5~8μm); Contact Resistance: Initial ≤10mΩ, ≤20mΩ after environmental testing
Mechanical Properties	Wire Pull-out Force: ≥15N (0.5mm² wire), ≥25N (1.0mm² wire); Bending Resistance: ≥3 million times (bending radius ≥8mm); Plug-in Life: ≥1000 times
Environmental Adaptability	Operating Temperature: -40℃~+125℃ (standard), -25℃~+85℃ (basic model); Insulation Resistance: ≥1000MΩ; Salt Spray Test: 48h no coating corrosion
Safety Certifications	UL 1007/1015, RoHS, CE, GB/T 5023 (national standard)
Included Accessories	Terminal protective sleeves, insulating heat shrink tubes, fixing buckles, wiring identification labels
