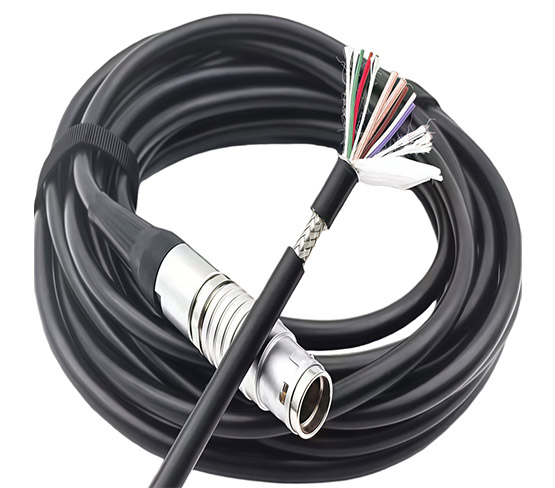

Medical Aesthetics Video Transmission Harness

Product Features:

√ Ultra-high-definition transmission, accurate color reproduction
√ Ultra-low latency and anti-interference, adaptable to complex environments
√ Medical-grade safety, disinfection resistant and easy to maintain
√ Adaptable to medical aesthetic scenarios, convenient to use

Whats App Message Email

Product Description

Designed specifically for medical aesthetic settings, its core purpose is to connect medical aesthetic imaging equipment (such as skin analyzers, endoscopes, and treatment monitoring cameras) to display terminals (high-definition monitors and recorders), enabling real-time, lossless transmission of 4K/1080P ultra-high-definition video signals. It is suitable for skin analysis, minimally invasive cosmetic surgeries (such as double eyelid surgery and fat grafting), laser treatment monitoring, and post-operative effect comparisons. The cable harness employs a medical-grade shielded transmission structure, a high-definition digital interface, and a biocompatible sheath, featuring low latency, anti-interference, accurate color, and disinfection resistance. It can withstand frequent movement, various disinfection methods, and environments with dense equipment interference during medical aesthetic treatments, making it a core signal transmission component ensuring the visualization and precision of medical aesthetic procedures.

Product Specifications

Item	Specification Details
Applicable Scenarios	Aesthetic medical scenarios such as skin detection, minimally invasive aesthetic surgery, laser treatment monitoring, post-treatment effect comparison, and aesthetic medical teaching live broadcast
Core Purpose	Real-time transmission of 4K/1080P video signals between aesthetic medical imaging equipment and display terminals, supporting monitoring, recording, and playback
Compatible Equipment	Aesthetic medical devices from brands such as Syneron Candela, Thermage, Alma Lasers, Olympus, and Mindray, including skin detectors, aesthetic endoscopes, high-definition cameras, and diagnosis displays
Transmission Parameters	Resolution: 4K (3840×2160)/60fps, 1080P/60fps; Transmission Bandwidth ≥18Gbps; Latency ≤20ms; Color Reproduction ≥99%
Interface Type	HDMI 2.1, 12G-SDI, DP 1.4 (Optional), supporting synchronous audio transmission
Cable Specification	Conductor: Multi-strand Tinned Copper Stranding (Conductivity ≥98%); Insulation Layer: FEP Low-loss Material; Sheath: Medical-grade Silicone/PU
Shielding Structure	Double-layer Shielding (Foil + Tinned Copper Mesh, Coverage Rate ≥98%) + 75Ω Impedance Matching
Connector Type	Gold-plated Precision Connectors, Foolproof Buckle Design; Plugging Life ≥1000 Cycles; Sealing Grade IPX6
Protection Performance	Sterilization Resistant (Alcohol / PVP-I / EO Sterilization); Water-resistant IPX6 (Connectors); Electromagnetic Interference Resistant; Resistant to human sweat corrosion
Safety Certifications	ISO 10993, GB 9706.1, CE MDR, FDA 510(k), RoHS, HDMI/SDI Certifications
Included Accessories	Sterile Packaging, Storage Straps, Connector Protection Covers, Sterilization Guide Card, Multi-interface Adapter Gaskets
