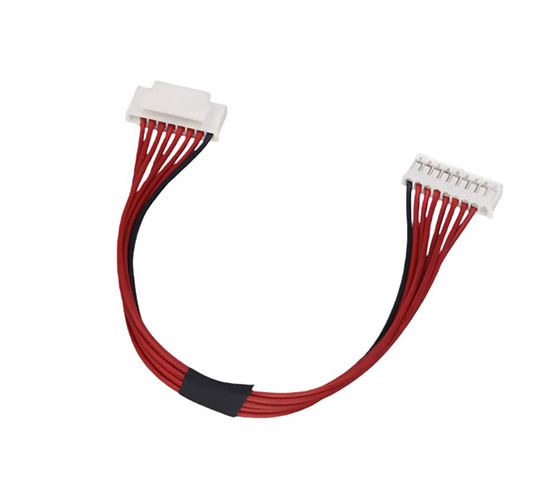

Battery protection board acquisition line

Product Features:

√ Accurate data collection
√ Safe and reliable
√ Precision manufacturing
√ Well-organized and orderly

Whats App Message Email

Product Description

Designed specifically for lithium battery pack (power/energy storage/consumer batteries) protection boards, this system accurately collects voltage and temperature data from a single battery string and feeds it back to the protection board control system in real time. It provides quadruple protection against overcharge, over-discharge, over-temperature, and over-current, serving as a core signal transmission harness to ensure safe battery operation and extend battery life. Suitable for lithium polymer batteries, 18650/21700 cylindrical batteries, and lithium iron phosphate battery packs (2S-20S strings); protection boards for electric vehicle battery packs, energy storage station battery packs, power banks, drone batteries, medical device batteries, and industrial equipment backup batteries; compatible with BMS battery management systems and PCB protection board sampling ports, supporting common terminal interfaces such as JST/PH/XH, ensuring precise and secure insertion and removal.

Product Specifications

Item	Specification Details
Application Scenarios	BMS (Battery Management Systems) for lithium battery packs (18650/21700/pouch batteries), energy storage systems, new energy vehicle battery packs, portable power supplies, etc.
Core Purpose	Battery cell voltage collection, temperature signal transmission, providing data support for overcharge/overdischarge/overtemperature protection
Compatible Devices	Lithium battery protection boards, BMS battery management systems, battery balancers, energy storage inverters
Electrical Parameters	Rated Voltage: ≤600V DC; Rated Current: 0.5A~3A; Voltage Collection Accuracy: ±1.5mV (meets BMS high-precision monitoring requirements); Insulation Resistance: ≥1000MΩ
Wire Specifications	Conductor: Stranded tinned copper / bare copper (conductivity ≥99%); Wire Gauge: AWG#24~#30 (corresponding to 0.14mm²~0.3mm²); Wire Structure: 7/0.16mm~16/0.10mm (stranded, high flexibility)
Insulation/Sheath Material	Insulation Layer: XLPO/PVC (flame retardant grade V0); Sheath: TPU / thermoplastic elastomer (oil-resistant, weather-resistant); Insulation Outer Diameter: φ0.8mm~φ1.5mm; Overall Wire Outer Diameter: φ2.0mm~φ3.5mm
Terminal/Connector Type	Terminals: C5191 phosphor bronze (tinned 5~8μm); Compatible with JST/AMP/PH series connectors; Contact Resistance: ≤10mΩ; Crimping Method: U-shaped groove crimping (fit rate ≥95%)
Mechanical Properties	Wire Pull-out Force: ≥15N; Bending Resistance: ≥3 million times (bending radius ≥6mm); Plug-in Life: ≥500 times; Vibration Resistance: 10~2000Hz, acceleration 10G, 20h no wire breakage
Environmental Adaptability	Operating Temperature: -40℃~+125℃; Storage Temperature: -55℃~+150℃; Salt Spray Test: 48h no corrosion; UV Aging Resistance: 1000h no cracking
Safety Certifications	GB/T 34131-2023, TÜV 2PfG 2693 (TÜV Rheinland 2PfG 2693), UL 1007, RoHS, CE, UL 94V0 (flame retardant)
Included Accessories	Terminal protective sleeves, insulating heat shrink tubes, numbered identification tubes, fixing buckles, wire harness wrapping tubes
